Butterfly Valve Suppliers
Butterfly Valve Suppliers in Pune, Dealers, Distributors & stockiest in Pune
Unison Enterprises is prominent Butterfly Valve Suppliers in Pune, Dealers, Distributors and Stockists in Pune. Our flow control solutions are high quality in performance, durability and accuracy. We have a variety of valves that guarantee great shut-off reliability and a good working pressure in industrial, commercial, and infrastructure applications as well as 36K+ global customers. Having ready stocks, competitive prices and quick delivery we are determined to satisfy various project needs at the same level of quality and reliable service delivery since 2009.

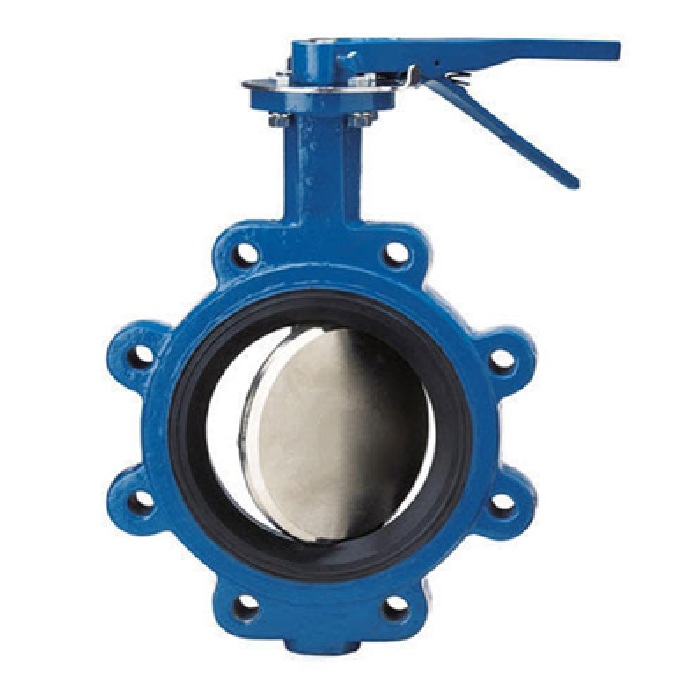

About Butterfly Valve
A Butterfly Valve is a quarter-turn flow control valve that is used to control or separate flow of liquids, gases or slurries in a pipeline. It is operated by rotating with a process of a rotating disc where it is fixed on a shaft, and can be easily opened and closed easily. It is also compact in design, has a lightweight structure and is cost effective hence it is very common in industrial and commercial use. We also offer the KSB Butterfly Valve for specialized industrial applications.
Types of Butterfly Valve
As Butterfly Valve Suppliers in Pune, we deliver various valves designed to meet specific piping and operational requirements.
-
Main Types of Butterfly Valves
- Concentric (Zero Offset): The stem goes through the disc and seat centre thereby being simple and cost effective. It offers low pressure and low temperature fluids and general fluids.
- Double Offset (High Performance): The body centre line and disc are not parallel with their stem, which minimizes friction of the seats and wear. It can be used in industrial services that are of a higher pressure and temperature.
- Triple Offset (Triple Eccentric): It is configured in three offsets and metal-to-metal seal which guarantees a bubble-tight shut-off. It is most suitable in the high-pressure, high-temperature and critical service applications.
-
Body / End Connection Types
- Wafer Type: It is lightweight and small in size and it is installed between two pipe flanges. Usually employed in the cost-effective and space-saving applications.
- Lug Type: It has threaded lugs that allow bolting on both sides of the pipeline. It can be used in dead end service and is simpler to maintain.
- Flanged Type: Fitted with flanges at both ends to be firmly clamped onto pipelines. Suited to the larger and heavy duty industrial use. We offer the Double Flanged Butterfly Valve for heavy-duty pipelines.
- Butt-Welded Type: Clamped permanently to the pipe and welded. Suitable in high pressure and extreme temperature services.
Technical Specifications of Butterfly Valve
As Butterfly Valve Dealers in Pune, we have added here a sheet of technical specifications for these valves.
| Specification | Details |
|---|---|
| Size Range | 40 NB to 1200 NB (1.5” – 48”) |
| Body Type | Wafer, Lug, Double Flanged (Short / Long Pattern) |
| Pressure Rating | PN 6 / PN 10 / PN 16 • ASME Class 150 / 300 / 600 |
| Design Standard | API 609 Category A / B • BS 5155 • IS 13095 |
| Face-to-Face Standard | API 609 • ISO 5752 |
| Leakage Class | Bubble Tight as per API 598 • ANSI Class IV / VI |
| Operating Temperature | -20°C to 200°C (Standard Elastomer Seat) • Higher Temperature Options Available |
| Operation Type | Hand Lever (Up to 200 NB) • Worm Gear (Above 200 NB) • Pneumatic / Electric Actuator |
| Body Material (MOC) | Cast Iron, Ductile Iron (SG Iron), Cast Steel (WCB), SS CF8 / CF8M / CF3M, Duplex SS |
| Disc Material (MOC) | Cast Iron, 2% Ni Cast Iron, SG Iron, SS CF8 / CF8M, Duplex SS |
| Seat Material | EPDM, NBR, Viton, Silicon, PTFE, Metal-Seated (Fire-Safe / High Temp). We also provide the Resilient Seated Butterfly Valve. |
| Shaft / Stem Material | SS 410, SS 304, SS 316, Duplex SS. Available as SS Butterfly Valve and Stainless Steel Butterfly Valve. |
Features of Butterfly Valve
As Butterfly Valve Distributors in Pune, we provide valves that are durable, low-maintenance, and easy to operate.
- Compact & Space-Saving Design
Butterfly valves are designed with a short face-to-face dimension and light-weight structure, which diminishes the installation space, structural load as well as the overall project cost. - Cost-Effective Solution
They are also a cost effective alternative to gate and globe valves and have a simple design as well as use less material particularly when larger than DN 300. - Quick & Easy Operation
The mechanism has a quarter-turn (90°) rotating disc to support quick opening and closing, hence making them suitable in manual, pneumatic or electric automation. We provide Gear Operated Butterfly Valve and Butterfly Valve With Actuator for automated operations. - Efficient Flow Control & High Performance
They give bubble tight sealing, low pressure drop and high pressure recovery, which can perform reliably in high flow and high performance applications. Control Valve applications are also supported. - Versatile & Low Maintenance
They can be used in on-off or modulating service in both high and low temperatures and pressures and have few moving components, which make their maintenance straightforward and long-lasting. Lined options such as Lined Butterfly Valve are available for corrosive or abrasive fluids.
Applications of Butterfly Valve
As Butterfly Valve Dealers in Pune, our valves are widely used in water treatment, chemical processing, and HVAC systems.
- Water & Wastewater Infrastructure
Widely applied in the water treatment plant, distribution networks, and the sewage network to control and isolate large amounts of water and slurry flow effectively. - HVAC & Building Services
Fitted in cooling towers, boilers, and chillers lines to control the flow of fluids and to maintain the flow of temperature in commercial and industrial buildings. - Process/ Manufacturing industries
Extensively used in food processing, beverage processing, chemical processing and pharmaceutical processing where hygienic design and a non-corrosive material are required to enable safe fluid handling. - Oil, Gas & Power Plants
Used in high pressure and high temperature pipelines particularly the double and triple offset designs to provide efficient shut-off and performance in the demanding process. - Marine and Fire Protection Systems
Applications in shipbuilding to control the seawater and in fire fighting pipes to provide reliable flow isolation in emergency response systems. We also provide Damper Butterfly Valve for airflow control in ventilation systems.
Why Choose Us as Butterfly Valve Suppliers in Pune?
- Assured Quality Products: We provide Butterfly Valves of industry standard that will guarantee durability, precision of performance, and prolonged service.
- Ready Stock & Fast Delivery: As Butterfly Valve Stockists in Pune our inventory range is large and we can assure rapid delivery on urgent and bulk orders.
- Competitive Pricing: We provide affordable cost solutions without compromising the products quality and performance.
Unison Enterprises is leading Butterfly Valve Suppliers in Pune, Dealers, Distributors and Stockists in Pune. We provide high quality Butterfly valves that guarantee quality performance, perseverance and maximum control of flow in various industries. Our priorities include holding available inventory, low pricing and prompt delivery. Our mission is to assist all projects using reliable products that address precise operation needs and industry standards. Connect With Us for more details.
FAQ’s
A Butterfly Valve is a device that is utilized to regulate or isolate the flow of liquids, gases or slurries in a pipeline. It has extensive application in water, HVAC, industrial and power applications.
It works on a quarter-turn rotating disc to open or close the passage of the flow. It is possible to make a 90-degree turn which would enable a quick and efficient flow.
Yes it can be either manually operated or automated by pneumatic, electric or hydraulic actuators to be remotely controlled.
