Pneumatic Cylinder Suppliers
Pneumatic Cylinder Suppliers in Pune, Dealers, Distributors & stockiest in Pune
Unison Enterprises is well-known Pneumatic Cylinder Suppliers in Pune, Dealers, Distributors and Stockists in Pune. Having more than 15+ years of experience and 50K+ total works done, We are specialized in offering quality Pneumatic Cylinders that have efficiency, durability and reliability. We are determined to learn and satisfy the special needs in the clients, and provide uninterrupted service and fast response, to be a reliable partner in the industry, which seeks reliable pneumatic systems.

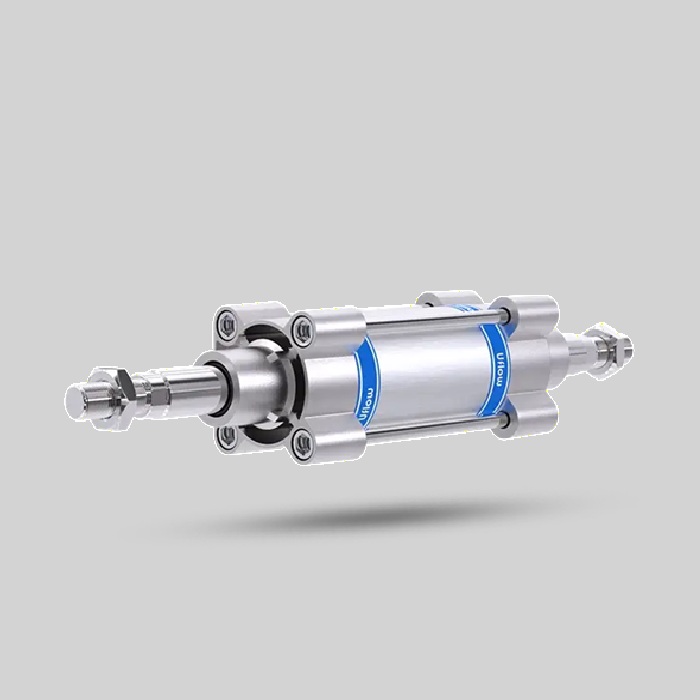

About Pneumatic Cylinder
It is an automated machine that uses compressed air to transform the linear motion, which can be automation-controlled with accuracy and efficiency. It is one that is used in the industries where it has been proven to be smooth, durable and to work reliably. Pneumatic cylinders are designed to be versatile and are the items that are necessary in the contemporary manufacturing and automation systems.
Types of Pneumatic Cylinder
As Pneumatic Cylinder Suppliers in Pune, we provide single-acting, double-acting, and compact cylinders suitable for industrial automation.
-
Single-Acting Cylinders (SAC):
- These cylinders utilize compressed air in order to act in a single direction, usually in the direction of extension, with the aid of a spring coiled within the cylinder, or an external load, to restore the piston to its initial position. They can be used to perform tasks such as clamping, to eject or even performing heavy-lifting that is of repetitive nature.
-
Double-Acting Cylinders (DAC):
- The use of compressed air in both extension and retraction provides fine control in either direction and offers consistency in the amount of force exerted in either direction. They are ideal in automation and need to be precise and dependable in movement.
-
Rodless Cylinders:
- These cylinders are used to move the load over and along the cylinder body without the use of a piston rod, usually by using either magnetic or mechanical coupling. Their small size renders them to be applicable in the long-stroke operations in space-limited areas.
-
Telescoping Cylinders:
- With several nested rods, telescoping cylinders provide a long stroke with a small retracted dimension. They are widely applied in the lifting, dumping, and other activities where the space and long-reach are of great importance.
-
Through-Rod Cylinders:
- Through-rod cylinders contain piston rods running through each end and so are equal-force and equal-speed in both strokes. This design offers an equal performance, suitable in push-pull application and heavy industrial applications.
Technical Specifications of Pneumatic Cylinder
As Pneumatic Cylinder Dealers in Pune, our cylinders are made from high-quality material with following technical specifications.
| Specification | Details |
|---|---|
| Bore Size | 12 mm – 320 mm, determines cylinder force |
| Stroke Length | Up to 3000 mm; longer strokes for telescopic cylinders |
| Operating Pressure | 1.0 – 10 bar (14.5 – 145 psi); higher pressures in specialized cylinders |
| Acting Type | Single-Acting (spring return) or Double-Acting (air for both directions) |
| Cushioning | Adjustable air or rubber bumpers for smooth end-of-stroke operation |
| Temperature Range | Standard: -10°C to 70°C; options up to 150°C or down to -40°C |
| Seal Material | Nitrile (Buna-N), Polyurethane (PU), Viton for high-temp and chemical resistance |
| Mounting Styles | Eye rod, fork, trunnion, foot mountings |
| Standards & Types | ISO 15552: Tie-rod (32–320 mm bore) ISO 6432: Mini (12–32 mm bore) ISO 21287: Compact (32–100 mm bore) Rodless Cylinders: Space-saving long-stroke design |
Features of Pneumatic Cylinder
As Pneumatic Cylinder Distributors in Pune, we offer cylinders with robust construction, minimal maintenance, and high operational reliability.
- Compact & Space-Saving Design
Designed in a slim shape, pneumatic cylinders are easy to install in small spaces of the installation without interfering with performance. - High Force & Adjustable Speed
Able to provide high linear force and even movement, and has the speed control options to suit various industrial needs. - Versatile Acting Types
Single acting (spring return) and/or double-acting (air-driven) models that provide a wide selection of automation requirements. - Durable & Low Maintenance
Constructed with non-corrosive components such as aluminium alloys and stainless steel, so that the performance can be long-term with less maintenance. - Improved Safety and Reliability.
Uses non-flammable compressed air and usually has position sensing magnets, thus it can be safely used in hazardous environments and provides very accurate monitoring.
Applications of Pneumatic Cylinder
As Pneumatic Cylinder Stockists in Pune, our cylinders are widely used in packaging, material handling, and automation equipment.
- Industrial Automation
They move robotic arm and automated equipment, thus, guaranteeing effective and accurate work. - Material Handling
They transfer, bring up, and down products along conveyor belts to facilitate the workflow. - Packaging & Processing
They can work on such tasks as the sealing, filling, and sorting, doing it in the same speed and accuracy. - Clamping and Assembly Operations.
They also transport portions safely to be drilled, welded or assembled safely and accurately. - Automotive and Specialized Systems.
Pneumatic Air Cylinder use brakes, suspensions, and assembly equipment, and are used in food-safe applications in special industries.
Why Choose Us as Pneumatic Cylinder Suppliers in Pune?
- Proven Expertise & Experience: As Pneumatic Cylinder Dealers in Pune, we possess not only vast knowledge in the industry but also effective solutions that will guarantee that all pneumatic cylinder projects undergo handling with accuracy and professionalism.
- Quality & Precision Guaranteed: Our cylinders are made of strong and corrosion-free materials that provide good performance, efficiency and durability over the long run.
- Innovative Solutions: Our high-end and tailored pneumatic products are responsive to a variety of industrial applications and work to improve productivity and efficiency of operation.
Unison Enterprises is leading Pneumatic Cylinder Suppliers in Pune, Dealers, Distributors and Stockists in Pune. Our mission is to provide efficient and quality pneumatic cylinders that improve efficiency and performance in industries. Our experience, long-lasting products and our customer-oriented mindset will guarantee you to find seamless solutions to any of your needs and make us a reliable partner when it comes to all your needs on when it comes to pneumatic automation. Connect With Us to have more information.
FAQ’s
Their primary categories are single acting, double acting, rodless, telescopic and through-rod cylinders which are oriented towards specific motion and space needs.
Single acting cylinders take air as one stroke and use springs as a means of returning, whereas the double acting type takes compressed air in all directions of movement.
Yes, they use a non-flammable compressed air that allows them to be used in high temperature or dangerous environments.
