Eccentric Screw Pump
Eccentric Screw Pump Suppliers in Pune, Dealers, Distributors & stockiest in Pune
Unison Enterprises is significant Eccentric Screw Pump Suppliers in Pune, dealers, distributors and stockiest in Pune. We develop pumps to work with viscous, abrasive and sensitive fluids. It provides a perfectly flowing, non-pulsating flow by its effective rotor-stator mechanism. Chemical, wastewater, food and pharmaceuticals industries are among the industries that depend on it to provide steady and dependable fluid transfer. It is a good solution to high-end industrial applications due to its flexibility and performance.
What is Eccentric Screw Pump?

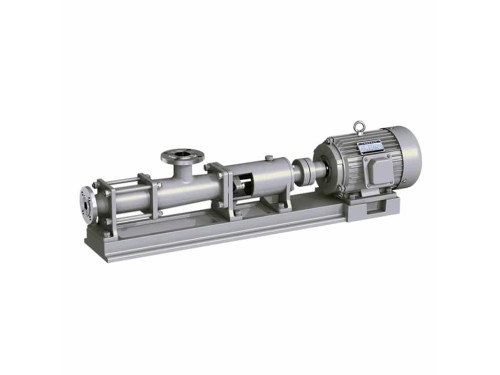

It is also known as a Progressive Cavity or Moineau Pump, uses an eccentrically rotating rotor inside a helical stator to move fluid efficiently. This motion forms sealed cavities that transfer the fluid smoothly from suction to discharge with gentle, low-pulsation flow.
Types of Eccentric Screw Pump
We as Eccentric Screw Pump Suppliers in Pune, offers following types of Eccentric Single Screw Pump:
-
Based on orientation
- Horizontal Eccentric Screw Pumps: It is mounted horizontally for stable installation, suitable for handling low to high viscosity fluids. Ideal for general industrial applications requiring smooth and continuous fluid transfer.
- Vertical Eccentric Screw Pumps: This pump installed vertically for efficient pumping from tanks, drums, or containers. Commonly used in food-grade and space-constrained applications.
-
Based on Design
- Block Series Pumps: It is compact, self-contained units designed for easy integration in industrial systems. Offer reliable performance for continuous pumping of various fluid types.
- Dosing Pumps: This pump engineered for precise metering of small, controlled fluid quantities. Suitable for low to high viscosity fluids across chemical and process industries.
- Drum and Container Pumps: These Pumps designed to pump fluids directly from drums and containers with minimal effort. Often mounted vertically for easier handling and controlled transfer.
- Progressive Cavity Pumps: A rotor-stator type of eccentric screw pump that relied on moving cavities to be generated. Provides flow that is not pulsating and viscous, abrasive or sensitive fluids.
- Hygienic Screw Pumps: This pump made of clean materials and stainless steel to operate without contamination. Applied in the food, beverage and pharmaceutical segments.
-
Based on Variation
- Motor Variations: This Pump may feature high-speed single-phase motors (SR) or standard IEC motors (DR). These motor options optimize performance based on application needs.
- Application-Specific Designs: It is customized for industries like food or fruit processing with FDA-approved components. Tailored features ensure safe, compliant, and efficient handling of specialized fluids.
Technical specification of Eccentric Screw Pump
We as Eccentric Screw Pump Dealers in Pune. We have added below a sheet of technical specifications for easy understanding of Pebble Eccentric Screw pump.
| Parameter | Specification |
|---|---|
| Pump Type | Positive Displacement – Progressive Cavity / Eccentric Screw Pump |
| Flow Rate | 0.1 m³/hr to 300 m³/hr (customizable based on model) |
| Discharge Pressure | Up to 48 bar (single stage up to 6 bar, multi-stage up to 48 bar) |
| Viscosity Range | 1 cSt to 1,000,000 cSt (handles highly viscous and shear-sensitive fluids) |
| Temperature Range | –20°C to +180°C depending on material selection |
| Solid Handling Capacity | Up to 8 mm particle size (higher upon request) |
| Rotor Material | Stainless Steel 304 / 316 / 316L, Alloy Steel, Hardened Steel |
| Stator Material | NBR, EPDM, FKM (Viton), HNBR, PTFE, Food-grade elastomers |
| Pump Casing | Cast Iron, SS304, SS316, Duplex Stainless Steel |
| Shaft Material | High-grade Alloy Steel / Stainless Steel |
| Seal Type | Mechanical Seal (Single / Double), Gland Packing |
| Drive Options | IEC Foot/Flange Motor, Gear Motor, VFD-controlled Motor, Hydraulic Drive |
| Mounting Options | Horizontal, Vertical, Baseplate-mounted, Trolley-mounted |
| Suction Lift | Up to 8 meters (depending on fluid characteristics) |
| Connection Type | Flanged (ANSI/DIN), Threaded, Tri-clamp (Hygienic Series) |
| Lubrication | Grease or Oil-lubricated drive system |
| Applications | Chemical, Wastewater, Food Processing, Oil & Gas, Pharmaceuticals, Sludge Handling, Adhesives, Polymers |
| Special Features | Low pulsation flow, reversible operation, dry-running protection (optional), CIP/SIP compatible |
Benefits of Eccentric Screw Pump
We as Eccentric Screw Pump Distributors in Pune, Our Eccentric Screw Pump SPECTRA offer following benefits:
- Smooth & Pulsation-Free Flow: It ensures continuous, uniform fluid movement, ideal for sensitive or shear-sensitive materials.
- Handles Viscous & Abrasive Media: Evenly delivers thick fluids, slurry fluids as well as solid-laden fluids without clogging.
- High Suction Capability: It has good at low inlet pressure self-priming (and high suction) performance.
- Low Maintenance & Long Service Life: Strong design minimizes wear and maintenance costs are reduced, and operational downtime is maximized.
- Versatile Industrial Application: Our pumps applicable in wastewater, food, chemical, and oil sectors, and provides effective service in most processes.
Applications of Eccentric Screw Pump
We as best Eccentric Screw Pump Stockiest in Pune; Our Three Phase Screw pump offer following types of applications:
- Wastewater & Sludge Handling: It is ideal to pump thick sludge, sewage and abrasive wastewater with non-pulsating flow that is steady and constant.
- Food & Beverage Processing: Our products carefully work with viscous products such as sweeten piercing products like sauces, pastes and dairy products and ensures product quality and hygiene.
- Chemical & Petrochemical Industries: Our pump is efficient in pumping corrosive, viscous or shear sensitive chemicals in a high precision and leak free manner.
- Oil & Lubrication Systems: It is applicable to oils, lubricants and fuel blends with an easy flow and reliable operation of pressure.
- Paints, Coatings & Adhesives: These pumps ideal in moving high-viscosity products like paints, resins and adhesives in such a way that the material properties are not modified.
Why Choose Us?
As one of the leading Eccentric Rotary Pump dealers in Pune, we excel in the following areas:
- Trusted Expertise: Our company offers high-performance Eccentric Screw Pumps which are supported by many years of experience and technical excellence in the industry.
- Premium Quality Construction: The construction of our pumps comprises strong materials that would guarantee it a long service life, high efficiency and stability.
- Customized Solutions: Our pumps are designed to suit the different industrial requirements with a customized pump design to achieve maximum compatibility and efficiency.
Unison Enterprises is well-known Eccentric Screw Pump Suppliers in Pune, dealers, distributors and stockiest in Pune. Our Eccentric Screw Pump has a performance that is efficient, reliable, in dealing with viscous, abrasive and sensitive fluids. It is offered with flow that is smooth and pulse free with great suction ability, to be used in the demanding industrial uses. It has long service life hence designed to be durable and has low maintenance. On the whole, it is an economical and reliable pumping system with diverse industries. Contact Us.
FAQ’s
These screws push off each other creating bubbles of the pumped liquid in the crevices of the screws. When the screws are rotating at opposite ends the pumped liquid moves along the spindles of the screws. Two, three, and any number of screws are nothing to be particularly magic; still, pockets are made.
Multi screw pump works easily in case of the viscous media with different viscosities like the viscous substance like lubricant oil, syrup or sludge.
The inability to prime a pump might cause numerous complications with its functioning and consequently, its failure. A screw pump is self-priming and so this process does not need to occur.
